Mechanical workshops

We are specialized in operations for chip removal, milling, boring, drilling, turning, grinding and lapping with digital and traditional control machines. We make turned and milled parts for a number of sectors with a high technological content for which prevision, quality, service and experience are required, and we are able to produce both small and large series and single parts. With the aid of state of the art machines the companies  in the Consortium have consolidated over the years their own specialization in manufacturing mechanical parts by also creating assembly departments.
Our activity consists mainly of the following:

• Feasibility study for the supply of raw materials or semi-finished products;
• Machining operations with horizontal and vertical lathes.
• Machining operations with digitally controlled lathes with 4° and 5° axes;
• Woodworking in medium dimensions carried out with wire, electrode and oxygen welding machines;
• Surface treatments;
• Heat treatments (tempering, stretching, annealing, etc.), galvanic and coating treatments;
• Manufacture of special tools and blades;
• Assembly and inspection of mechanical units.

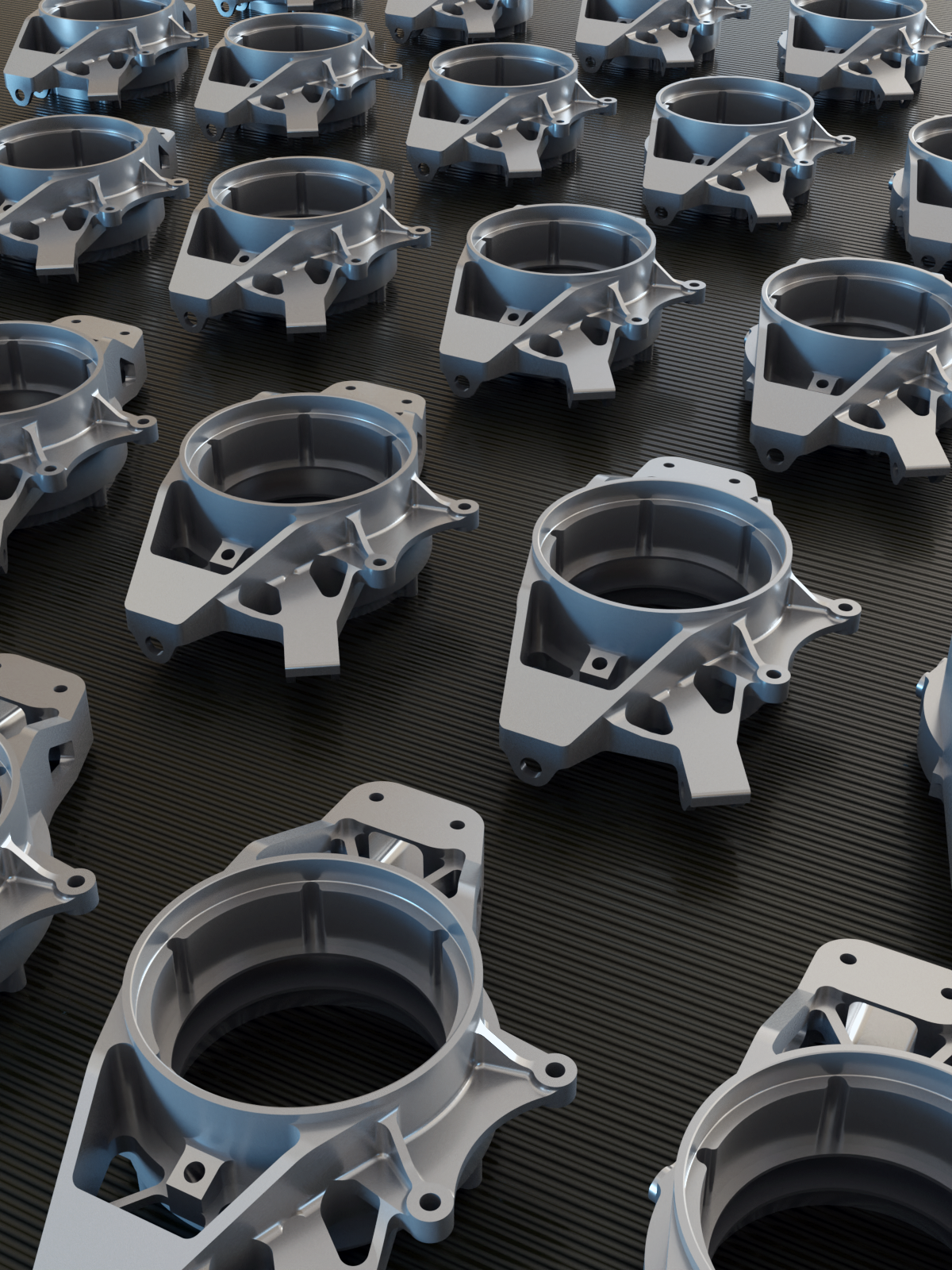

The dimensions of the parts vary from those of precision instruments to those relating to machine parts and the machining of complex parts such as bed plates and casings. The quantities may vary from a single part (prototype) to batch series.

Click on operations for more information.

• TURNING

  CNC lathes with driven tools and C axis – Multitasking lathe with double spindle and double turret with driven tools – Turning up to 1200mm length a and 600mm diameter.

• MILLING, DRILLING, BORING

  4 ad 5 axis vertical machining centers with and without pallets – max stroke 3000x800x800 – Horizontal milling multipallet centers max stroke 800×600 – Milling centers for aluminium max stroke 7000x500x500.

• GRINDING
  Outside diameters from a minimum of 1 mm to a maximum
  of 400 mm. Diameter of holes from a minimum of 3 mm to a maximum of 200 mm.-grinding and internal lapping;
  -External grinding on centers and without centers;
  -Horizontal/tangential grinding;
  -Grinding of clearances and radii;
  -Special grinding.
  (Complete grinding of ceramic parts with exclusively dedicated diamond-tipped machines and tools).
• MATERIALS

  The Consortium commonly machine steel, stainless & special steels, iron and nonferrous alloys, bronze, aluminium, brass, cast iron, titanium, plastic materials (PVC, Teflon, PE).

  Preferably small to medium sized parts are machined.

• TARGET MARKET SECTORS

  The major sectors the Consortium deals with are: aerospace, food & wine industry, automotive, electronic, electromechanical, railways, energy, marine, textile machinery.

• CERTIFICATIONS

  The Consortium Scalve Meccatronik has a test & measurement room with certified instruments for every size inspection: height, internal and external diameters, taper and roundness control, flatness and roughness control, surface control (smoothness, radius).
